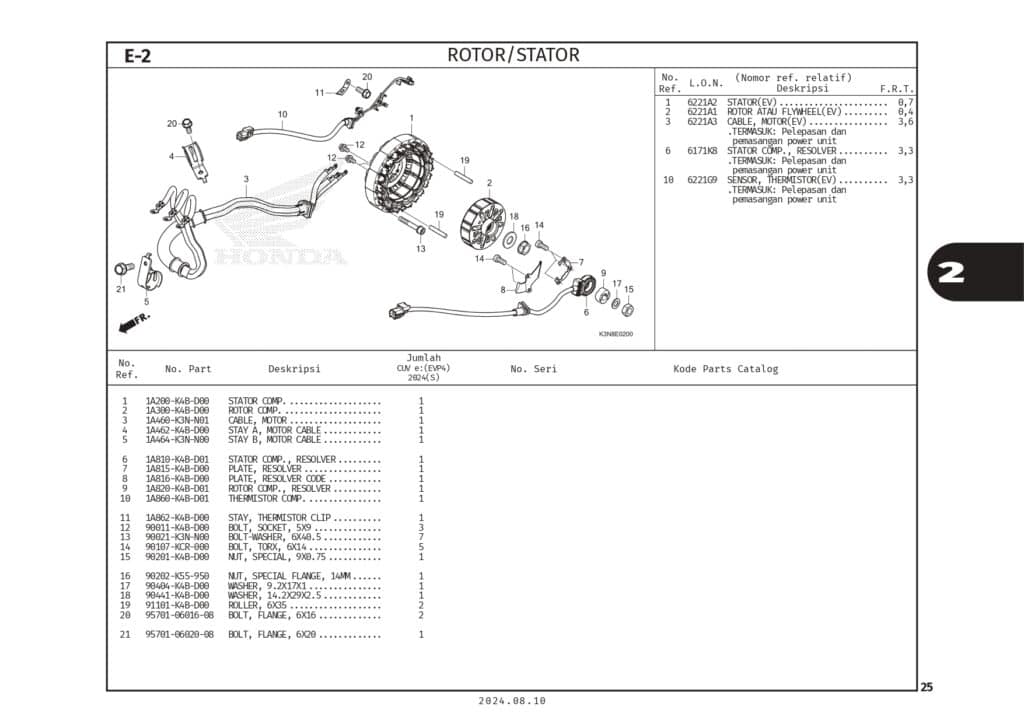

E-2 Rotor Stator – Katalog Suku Cadang Honda CUV e:

#

Gambar

Nama Part

Harga

Order

1

STATOR COMP
1A200K4BD00

2

ROTOR COMP
1A300K4BD00

3

CABLE,MOTOR
1A460K3NN01

4

STAY A,MOTOR CABLE
1A462K4BD00

5

STAY B,MOTOR CABLE
1A464K3NN00

6

STATOR COMP,RESOLVER
1A810K4BD01

7

PLATE,RESOLVER
1A815K4BD00

8

PLATE,RESOLVER CODE
1A816K4BD00

9

ROTOR COMP,RESOLVER
1A820K4BD01

10

THERMISTOR COMP
1A860K4BD01

11

STAY THRMISTOR CLIP
1A862K4BD00

12

BOLT,SOCKET 5X9
90011K4BD00

13

BOLT-WASH,6X40.5
90021K3NN00

14

BOLT,TORX,6X14
90107KCR000

15

NUT,SPL M9X0.75
90201K4BD00

16

NUT,SPL FLANGE 14MM
90202K55950

17

WASHER,9.2X17X1
90404K4BD00

18

WASHER,14.2X29X2.5
90441K4BD00

19

ROLLER,6X35
91101K4BD00

20

BOLT,FLANGE 6X16
957010601608stok habis

Rp 2,000

stok habis

21

BOLT FLANGE 6X20
957010602008stok habis

Rp 7,000

stok habis

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
